[Daekyung Tech] Mechanical universal testing machine

Quote Contact_cs@roasexpo.com

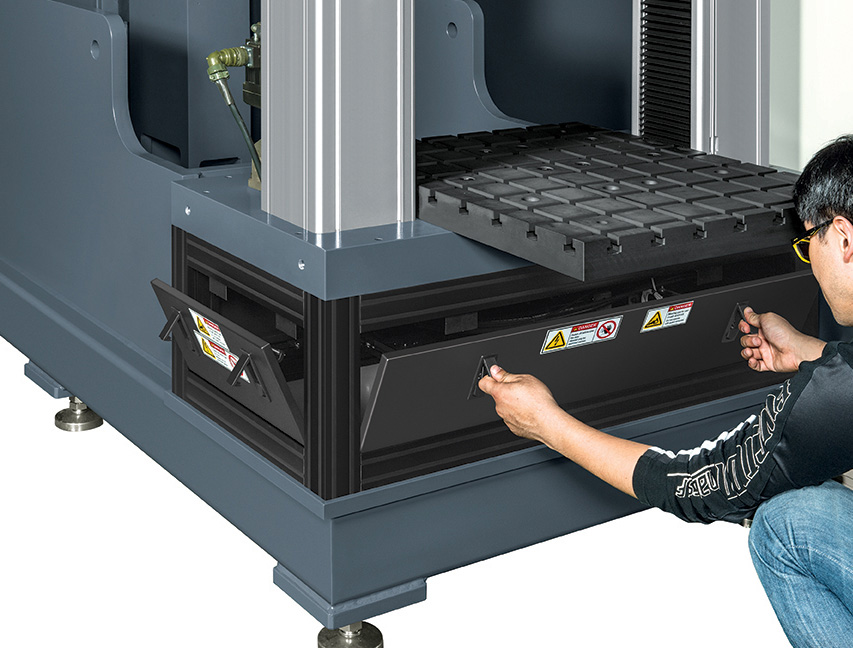

The lower part of the product is designed to open together in three directions,
and the motor driver and control parts of the machine are placed on a shelf on the rail, enabling convenient AS.

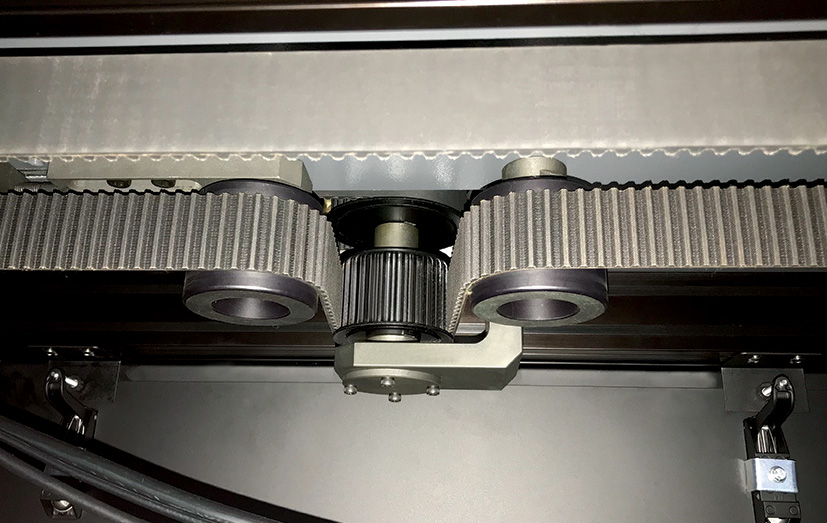

Precise driving method

It is designed for precise and quiet operation as it is a belt-driven type,
and it can realize the precision of international standards and is advantageous for load maintenance.

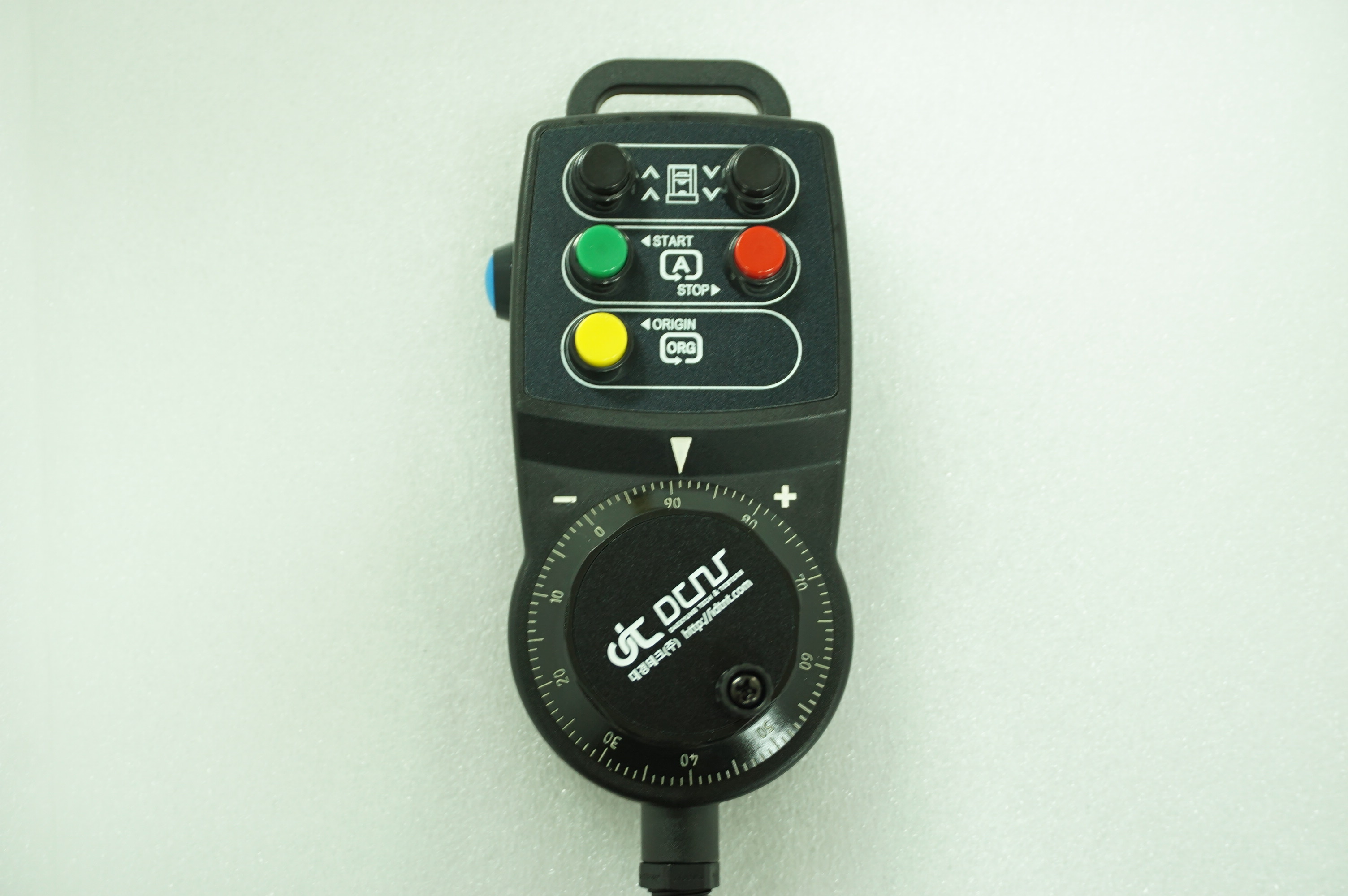

More advanced remote control

The new remote control with jog button moves displacement of 0.005mm (based on 100kN) per click,
and it is convenient to adjust the position of the fine crosshead or remove the initial load after biting the sample.
Even during calibration, you can use this jog button to precisely control and maintain the load.
In case of repeated testing of the same sample,
you can use the test start button to immediately retest without going through a program.

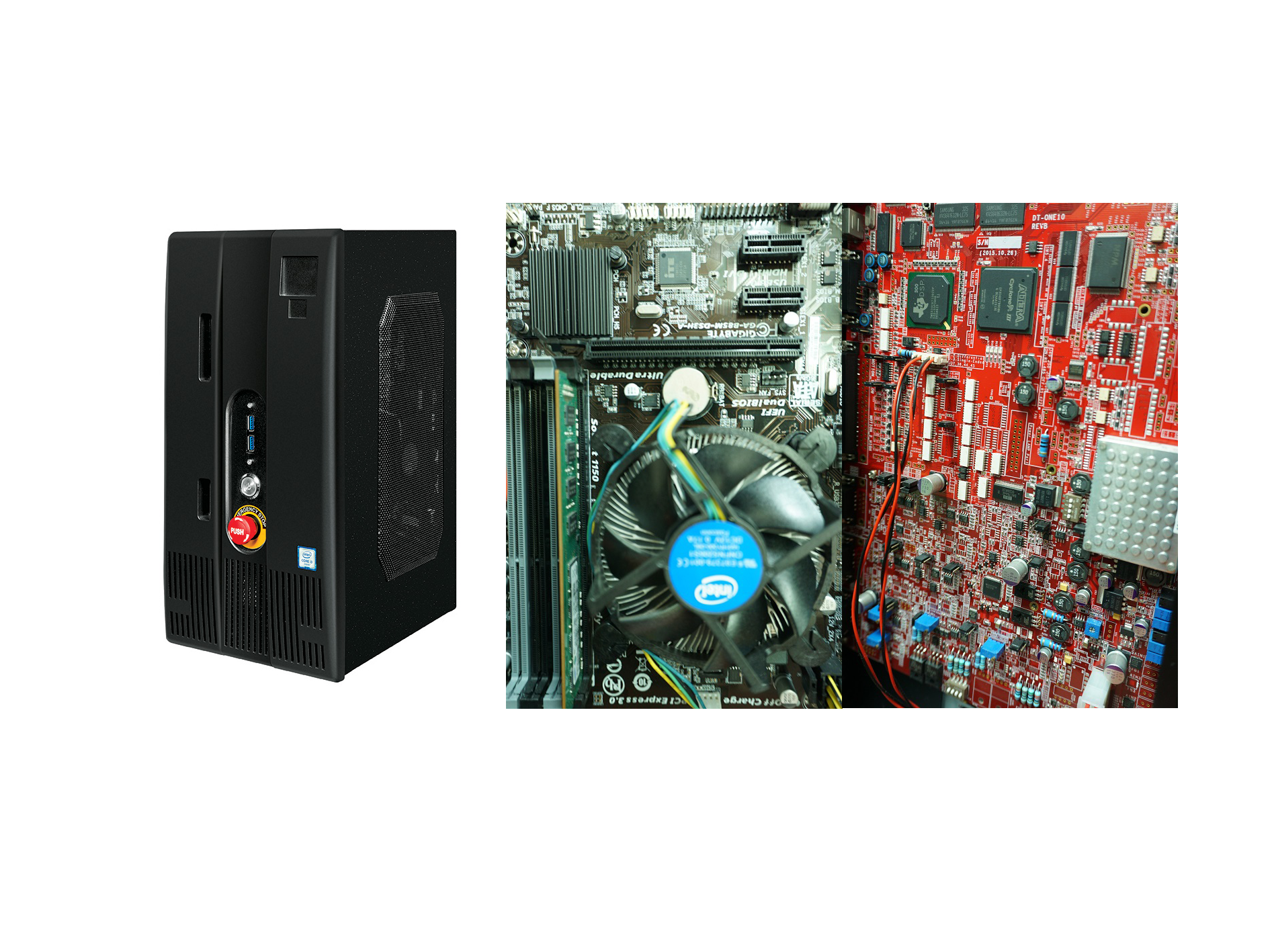

New controller

The new DSP CONTROLLER (DTX-2000) is the second generation model of the existing DTX-1000.
By developing and using our own board, we can accurately implement load speed control ,
and elongation speed control to meet the test conditions that meet ASTM STANDARD,
and secure data processing speed that does not fall apart by competing with foreign brands.
The possibility of load cell damage is minimized and noise control is possible.
By memorizing the absolute position,
you can always position the crosshead to the desired place even after rebooting.

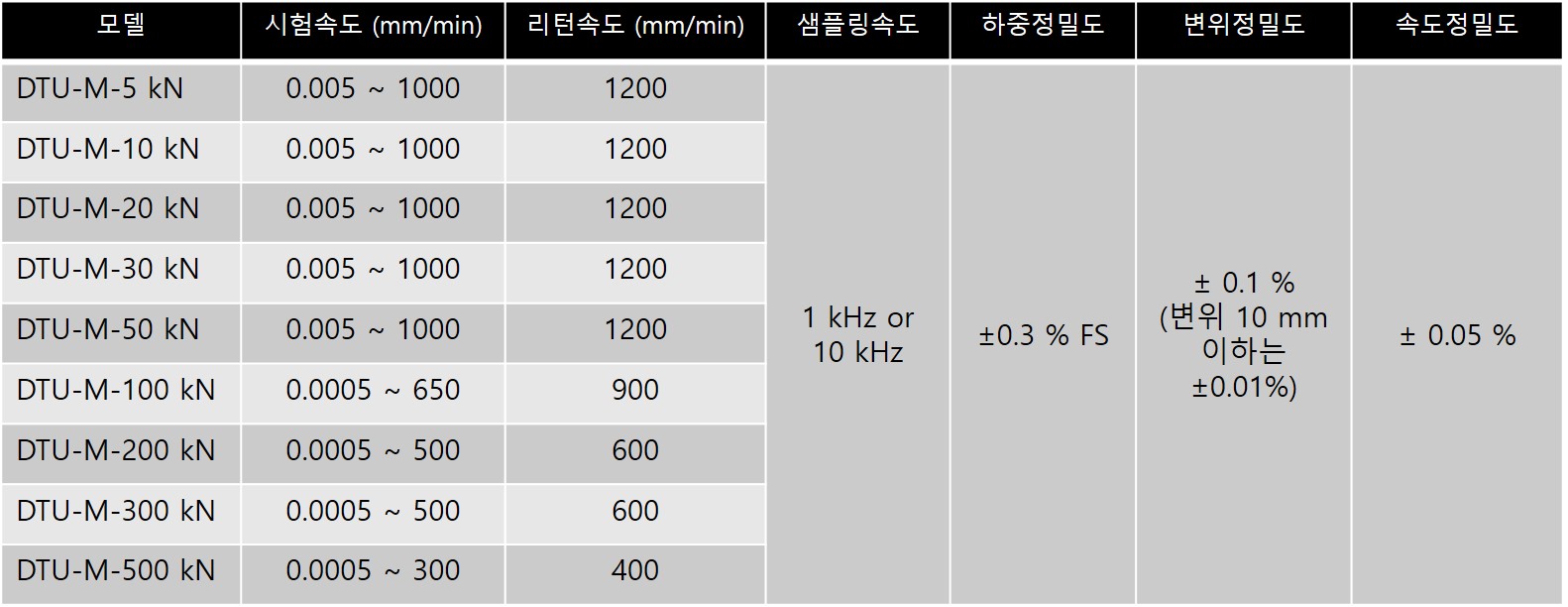

DTU-M Series Basic Specifications

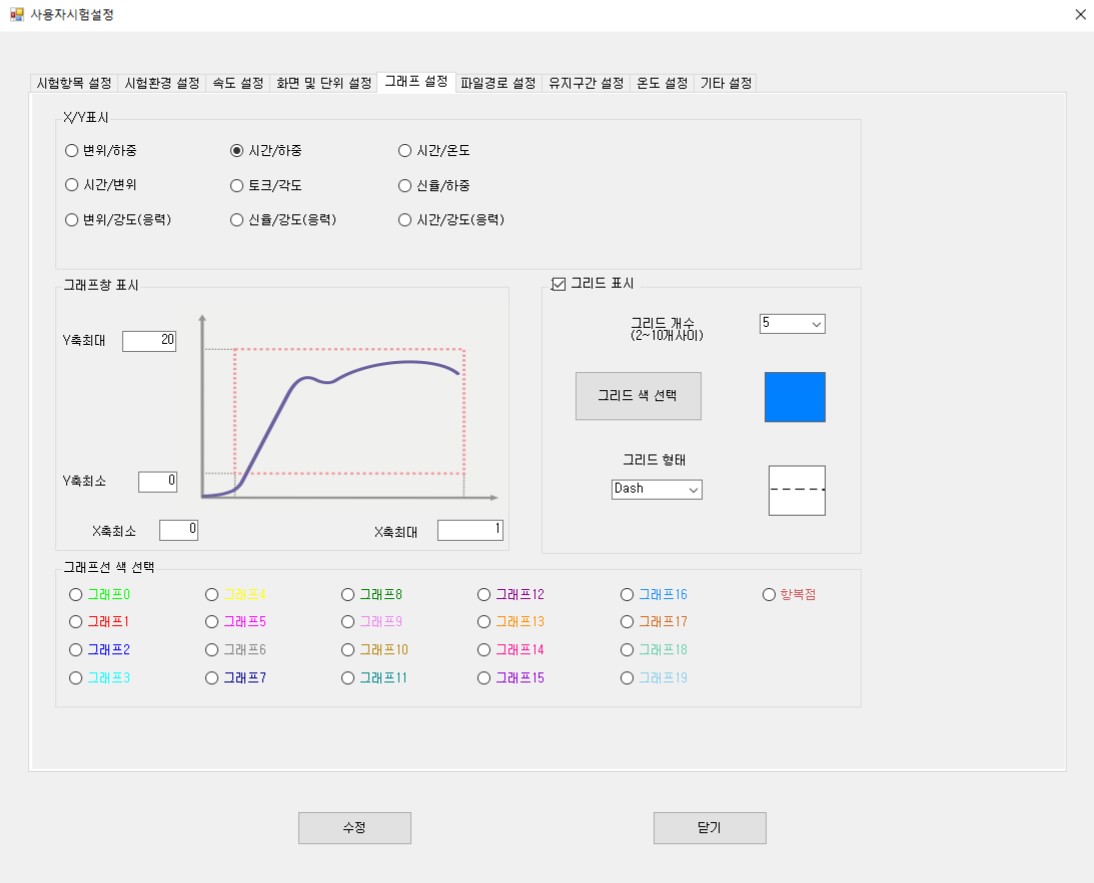

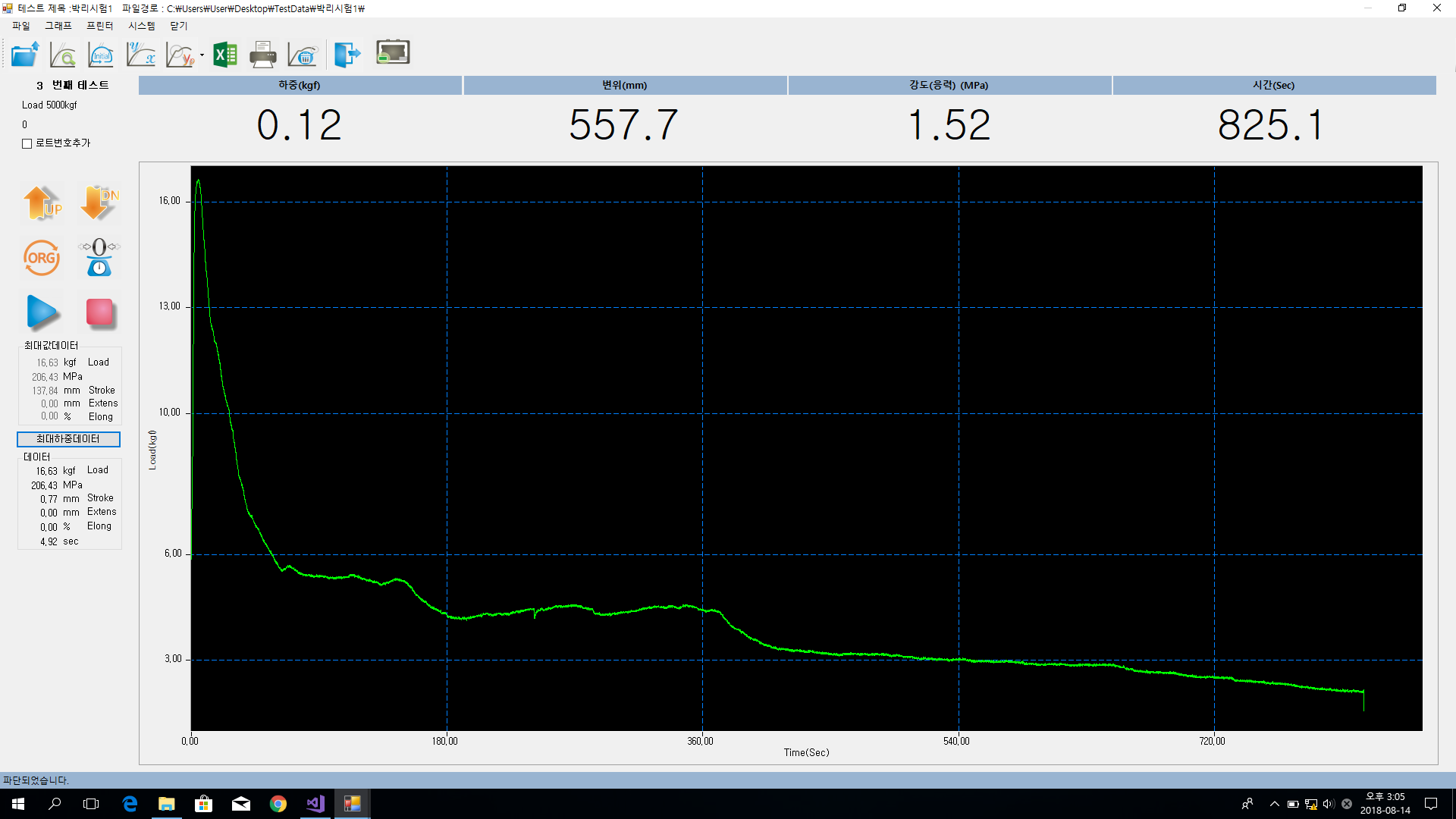

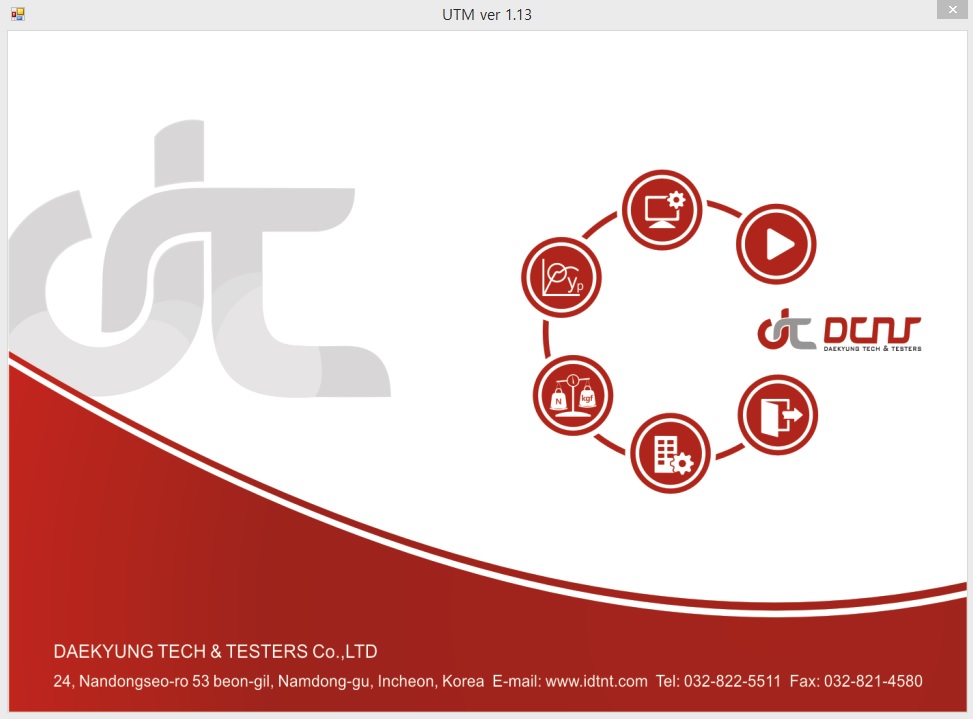

Breakthrough Software - HIVE

By introducing the library system, it is designed so that new operators can test quickly and safely.
After setting the test conditions, if you save them in the library folder,
you can call them at any time and perform tests that meet the conditions immediately.
In an environment where multiple operators handle the testing machine,
it can cause problems due to incorrect use or innovatively reduce the time it takes for new users to handle the testing machine.

* library system

- Title of exam

- Tensile/Compression/Repeat determination

- Determination of sample type

- speed setting

- Special condition setting (load maintenance and ramp section tuning)

- Graph and unit setting

- Set the movement of the crosshead after the test

- File saving section setting

* Test conditions saved in the library system can be loaded and the test can be performed immediately, and all test contents are automatically saved in a folder.

Automatic OFFSET Yield Point Search
Poisson's ratio measurement
R value measurement
Auto-detect modulus
load holding test
multi-speed test
cycle test
High-temperature furnace/environmental chamber application test
Convert data to excel

For more information, please contact us through the link below.
