[YEONJIN S-TECH]Universal Testing Machine(UTM)

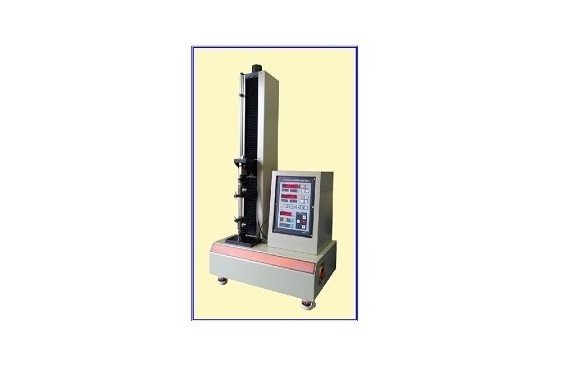

Universal Testing Machine, 500kg

This tester is an entry-level computerized tension tester with minimized functions so that tests can be carried out quickly at product production sites and test laboratories. This model is suitable for tensile testing of chemical products such as rubber, plastic, polyester, polypropylene, fabric, and drawn yarn. A load cell is used as a load sensing device and it is manufactured in Bench Mounting Style.

☞ Characteristic

- As soon as the test starts, the test status is displayed on the computer monitor in real time as a graph, and after the test is completed,
the test data is printed out as a test report, and the data is saved as a file for more efficient test data management.
- The test distance can be easily adjusted by electric power.
- There is a maximum load safety device and a distance limit safety device.

☞ Key Specifications and Features

Model : UTM- 5kN

•4 Range: 1st stage:50, 2nd stage:100, 3rd stage:200, 4th stage:500 kgf
•1 Digit : 1st stage:0.002, 2nd stage: 0.01, 3rd stage: 0.02, 4th stage: 0.05 kgf
•Load sensor : 500 kgf
•Loading precision: ± 0.5%
•Load display method: Digital Display
•Displacement detection sensor: Rotary Encoder, 1 Digit: 0.01mm
•Displacement accuracy: ± 0.3%
•Displacement display method: Digital Display
•Maximum tensile distance: 600 mm
•Drive motor : AC Motor
•Speed Control Drive: AC Motor Drive
•Speed Control Type: Volume Control Type
•Speed Control Display : Digital Display
•Test speed: 1 - 500 mm/min
•Indicator function: Zero, Peak, Hold, Over Load
•control panel switch

- Power input key switch - Power input switch
- Crosshead up/down switch - Test method selection switch
- Speed adjustment volume - Test speed adjustment switch
- Emergency switch - Crosshead stop switch in case of emergency
- Quick return switch - Return to original position at the fastest speed
- Application test jig - Tensile strength test jig - 1set

Applied test method

- Tensile test: maximum load, maximum displacement, tensile strength, elongation, yield point, modulus, section shrinkage, true stress,
limit load, limit displacement function, area, yield line drawing

- Adhesion test: maximum load, maximum displacement, 1st ~ 4th displacement load, 4 point average load, total average load, section setting,
section average load, section minimum load, section maximum load.

- Tear/Peel Test: Maximum load, maximum displacement, tear/peel strength (average value according to the number of set peaks)

Power: single phase 220v, 60Hz, 1kw
Tester size: 550(W) X 500(D) X 1300(H)
Weight: about 50 kg

☞ Safety device

Mechanical device: When the distance exceeds a certain distance, the system is stopped by detecting it with a limit switch.
Electronic device: When the maximum load is exceeded, the system is stopped by detecting it as Overload in Indidata
Manual stop: Manually stop the system in case of danger by using the emergency switch.
