[YEONJIN S-TECH]Probe tack meter(Probe Tack Testing Equipment)



This product is a precise device that measures the tack, adhesion of an adhesive or adhesive film using a ball or flat probe of various materials and sizes
such as stainless steel, polymer, glass, and ceramic that can be replaced by users. ), MLCC, ACF, and a device used to evaluate the fine adhesive
properties of die attach film. When the test fixture is replaced, it is possible to test peel strength, tensile strength, compressive strength, flexural strength,
and loop tack. Supplied as one set of device body, interface (or indicator), application and essential accessories.

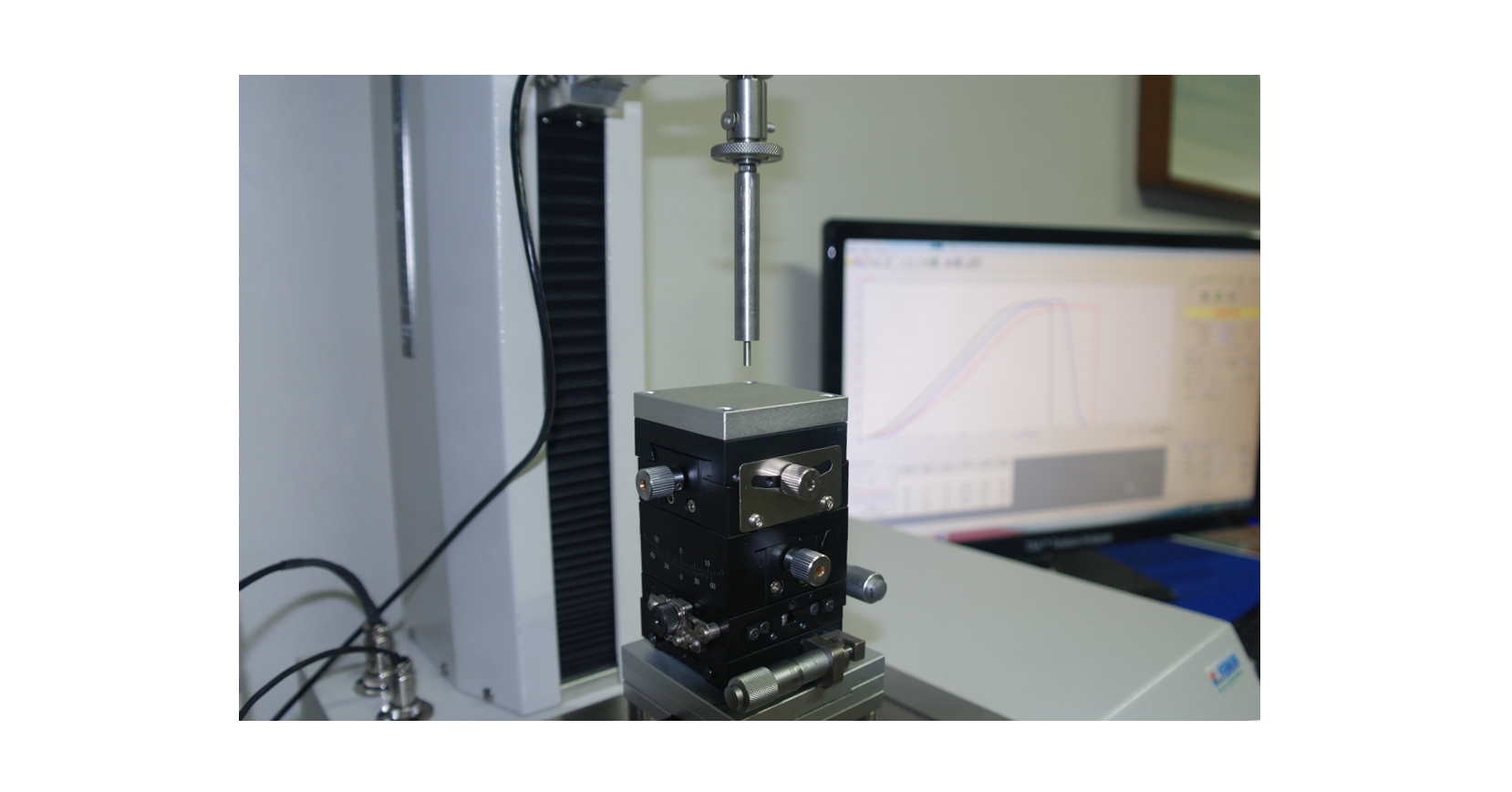

Probe tack tester with Horizontal contact option

This product is a precise device that measures the tack, adhesion of an adhesive or adhesive film using a ball or flat probe of various materials and sizes such as stainless steel, polymer, glass, and ceramic that can be replaced by users. ), MLCC, ACF, and a device used to evaluate the fine adhesive properties of die attach film.
When the test fixture is replaced,
it is possible to test peel strength, tensile strength, compressive strength, flexural strength, and loop tack. Supplied as one set of device body, i
nterface (or indicator), application and essential accessories.

Inquire Quote - ca@roaexpo.com
